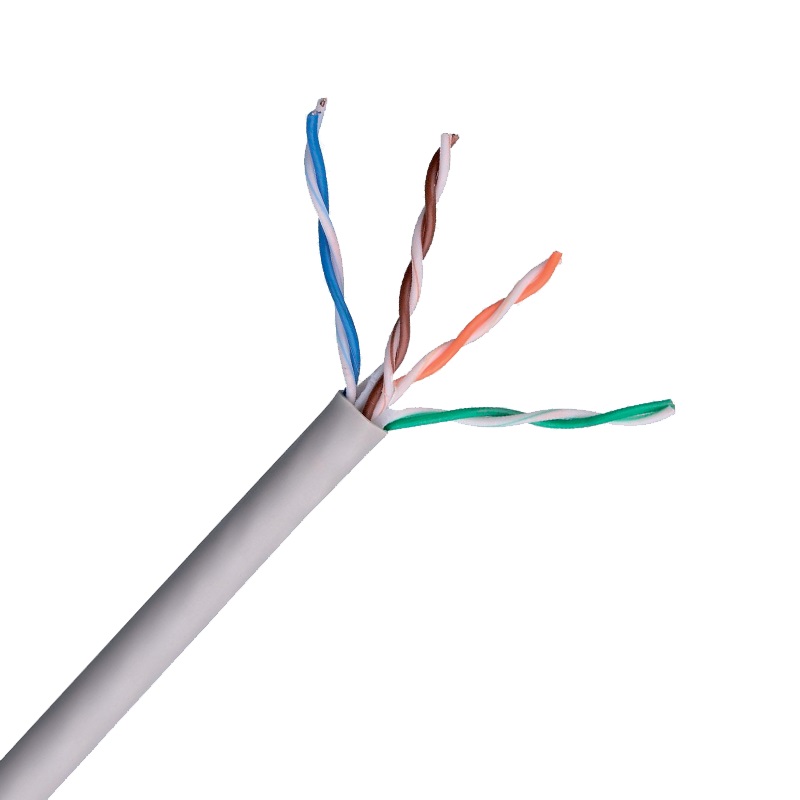

Cablu UTP Categoria 5E 4 x 2 x 24 AWG ambalare 305 ml

Cablu UTP Categoria 5E 4 x 2 x 24 AWG ambalare 305 ml

Cable, stranded by pairs, used for transmission of digital signals with high speed of transmission, with spectrum
of the frequency being used up to 100 MHz for cat. 5 and up to 125 MHz for cat. 5e. Suitable for setting computer
systems for data transmission, measuring and control systems with proper resistance to electromagnetic influences

TECHNICAL DATA:
• Ambient temperature: -30°C to +50°C
• Temperature of laying: min. 0°C
• Characteristic Impedance: 100 Ω ± 15 Ω
• Loop resisistance: ≤ 192 0/ km
• Unbalance of loop resistance: ≤ 3%
• Insulation resistance: ≥ 150 MΩ x km
• Operating capacity: ≤ 55,8 nF/km
• Cable diameter: 5 mm
• Cu weight: 16,5 kg/km
• Cable weight: 27 kg/km

CONSTRUCTION:
• Solid Cu-wires - 24 AWG; 0,51 mm, acc. to IEC 60228
• Insulation: PE compound
• Cable bundle: 4 stranded pairs
• Outer sheath: PVC compound or LSOH compound
• Outer sheath colour: for PVC-grey
